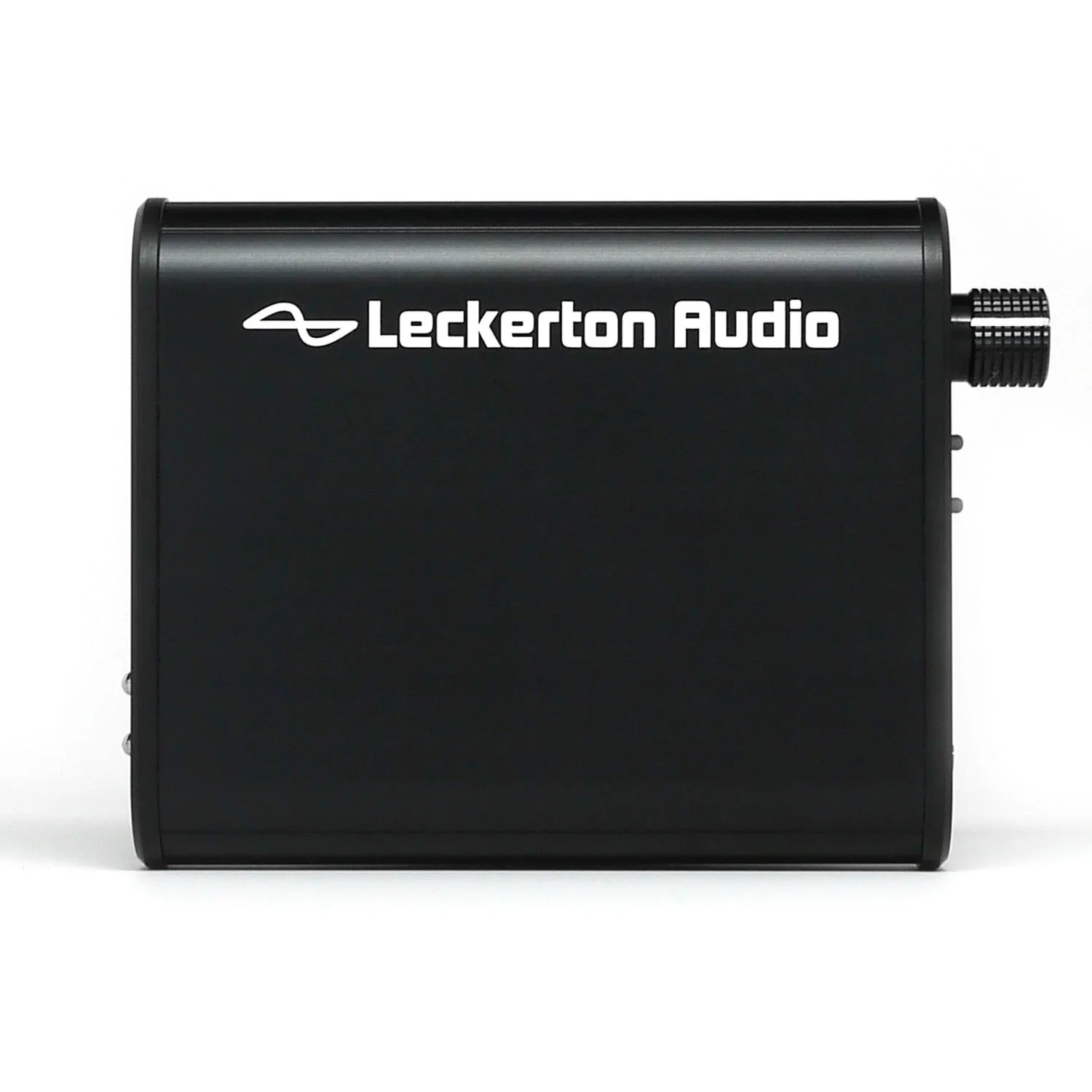

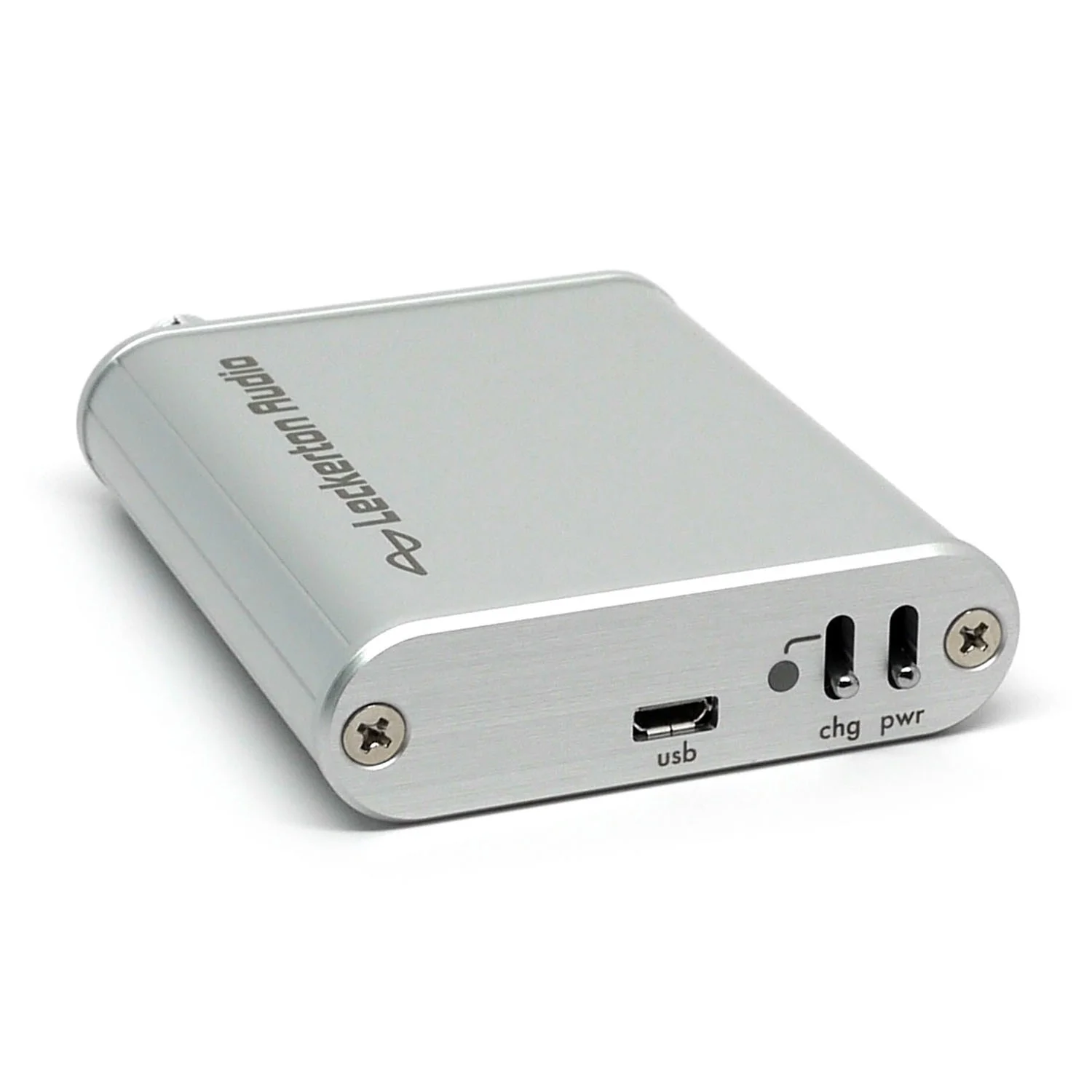

UHA760 USB DAC/Amp with Digital Volume Control and Crossfeed

UHA760 USB DAC/Amp with Digital Volume Control and Crossfeed

399.00

Features:

- USB and analog inputs
- Advanced asynchronous digital-to-analog converter
- High-power, low-distortion amplifier output
- Digitally-controlled volume for precise channel balance
- Adjustable crossfeed for more natural soundstage
- Rechargeable battery with charge disable control
- Works with Mac, PC, iOS, and Android
- 30-day audition period and 2-year warranty

Color:
Add To Cart


Get the most out of USB.

In order to achieve the best performance with standard resolution USB audio (up to 48-kHz/16-bit), the UHA760 uses a two-stage digital-to-analog conversion process. The first stage, an asynchronous sample rate converter, upsamples the USB audio to 192 kHz and removes jitter introduced during the USB transmission. This provides a cleaner and more accurate digital input signal for the second stage, Cirrus Logic’s flagship CS4398 digital-to-analog converter chip. The result is an audio output with spectacular detail and clarity.

Stay centered.

Unlike analog volume potentiometers, which can sound unbalanced at some settings, the UHA760’s digitally-controlled volume maintains precise matching between the left and right channels. It uses a series of discrete resistors to keep the image stable and centered at any volume setting. With 1-dB steps and three levels of gain control, you are guaranteed smooth and accurate volume adjustments at any gain level.

Change your soundstage.

In a natural acoustic environment, low-frequency sounds are able to diffract (or “bend”) around the head, and we end up hearing those sounds with both ears. Not so with headphones — a low-frequency sound in one channel is only heard by the corresponding ear. With some recordings, this can create an unnatural experience, causing fatigue over time. The UHA760 includes an adjustable crossfeed feature which allows you to blend some of the low-frequency sound from each channel into the opposite ear, creating a more natural soundstage.



Compatibility

iPhone 4s/5/5s/5c/6/6s/7

Supports digital interface over USB (requires iOS 7 or higher and the Apple Lightning to USB Camera Adapter). Supports analog connection from headphone output or line out dock (LOD) to line input. USB digital interface is not supported on earlier models.

iPad

Supports digital interface over USB on all models (requires the Apple Lightning to USB Camera Adapter or 30-pin Camera Connection Kit). Supports analog connection from headphone output or line out dock (LOD) to line input.

iPod Touch 5th Gen

Supports digital interface over USB (requires iOS 7 or higher and the Apple Lightning to USB Camera Adapter). Supports analog connection from headphone output or line out dock (LOD) to line input. USB digital interface is not supported on earlier models.

Android

Supports digital interface over USB (requires OS support for USB Audio Class 1.0). Supports analog connection from headphone output to line input.

Mac

Supports USB digital interface with sample rates up to 48kHz/16-bit using built-in operating system drivers (USB Audio Class 1.0). Supports TOSLINK or digital coax interface with sample rates up to 96kHz/24-bit.

Windows

Supports USB digital interface with sample rates up to 48kHz/16-bit using built-in operating system drivers (USB Audio Class 1.0). Supports TOSLINK or digital coax interface with sample rates up to 96kHz/24-bit.



Specifications

Inputs

Analog (stereo 3.5 mm), Micro USB

Gain

Low-gain setting: -12 dB at full volume setting

Medium-gain setting: 0 dB at full volume setting

High-gain setting: +12 dB at full volume setting

Volume Control

Digitally-controlled, 1-dB steps

USB Sample Rate

Up to 48kHz/16-bit

DAC Chip

Cirrus Logic CS4398

Max Output Power

16 ohms: 30 mW

32 ohms: 55 mW

62 ohms: 100 mW

100 ohms: 125 mW

300 ohms: 55 mW

(Measurement conditions: Analog input at 1 kHz, output <1% THD)

THD+N

16 ohms: 0.0036% at 1 mW, 0.0037% at 10 mW

32 ohms: 0.0035% at 1 mW, 0.0038% at 10 mW, 0.0078%, at 30 mW

62 ohms: 0.0029% at 1 mW, 0.0034% at 10 mW, 0.0061% at 50 mW

100 ohms: 0.0030% at 1 mW, 0.0030% at 10 mW, 0.0048% at 50 mW

300 ohms: 0.0042% at 1 mW, 0.0036% at 10 mW, 0.0031% at 40 mW

(Measurement conditions: Analog input at 1 kHz, 20 Hz to 20 kHz bandwidth, no weighting)

Frequency Response, Analog Input

<3 Hz to 75 kHz, ±1.0 dB

7 Hz to 22 kHz, ±0.1 dB

Frequency Response, USB Input

<3 Hz to 23 kHz, ±1.0 dB

7 Hz to 22 kHz, ±0.1 dB

(Measurement condition: 48 kHz sample rate)

Output Op-Amps

Standard: Analog Devices AD8610 (non-replaceable)

Internal Power Supply

±7 V, ground-centered, switching converter + high-performance linear regulator

Battery life

Analog input: Up to 12 hours

USB Input (charging disabled): Up to 6 hours

Output impedance

<0.5 ohm

Enclosure

Two-piece extruded aluminum body, machined aluminum end panels, scratch-resistant laser engraving

Dimensions

2.8 x 3.8 x 0.8 inches (70 x 97 x 20 mm)

Weight

6.0 oz (170 g)

Included in the Box

- UHA760 DAC+Amp
- Micro USB cable, 3 feet (1 meter), with velcro cable tie
- Velvet carrying pouch
- Self-adhesive rubber feet

User Guide
